This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other
manufacturers and/or other applications. And it can act as repeaters within the network regardless of vendor to increase reliability of the network.
Mini size design allows the module can easily recessed into a electricity distribution box.
Outside/exterior location must not be located inside a metal cabinet.
For best Z-Wave communication a IP65 or higher Plastic enclosure is reccomended.
This dual meter module is able to detect Instant power wattage (13800W/230Vac)(60 Amperes) of connected light or appliances.

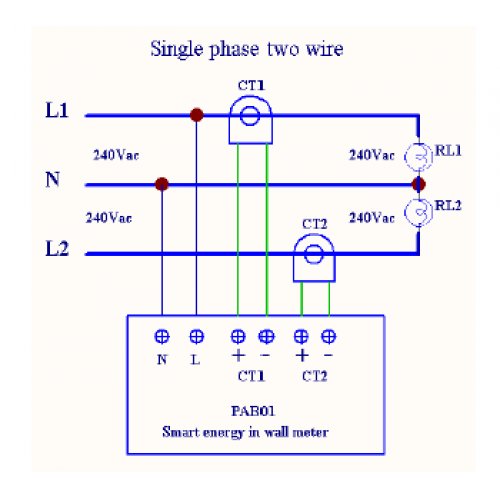

Note：This meter is directional. If the value of CT1 or CT2 is always 0, reverse the direction of the clamp sensor should get an appropriate value.

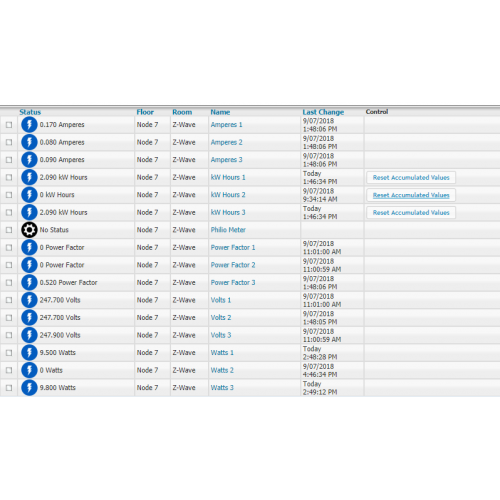

Homeseer: All functions. kWh, amps,line voltage, watts
Vera: Limited Reporting - presently confined to KWH and Watts
For use with Vera add as a Generic Device.
Then use D_PowerMeter1 as the xml and json files, Go to Advanced, Params, and if they already do not have these values, change the category_num to 21 and subcategory_num to 0.
Black Cat Z-Wave Smart Energy Meter
- Brand: Black Cat
- Product Code:
- Availability: In Stock
AUD $ 164.95
