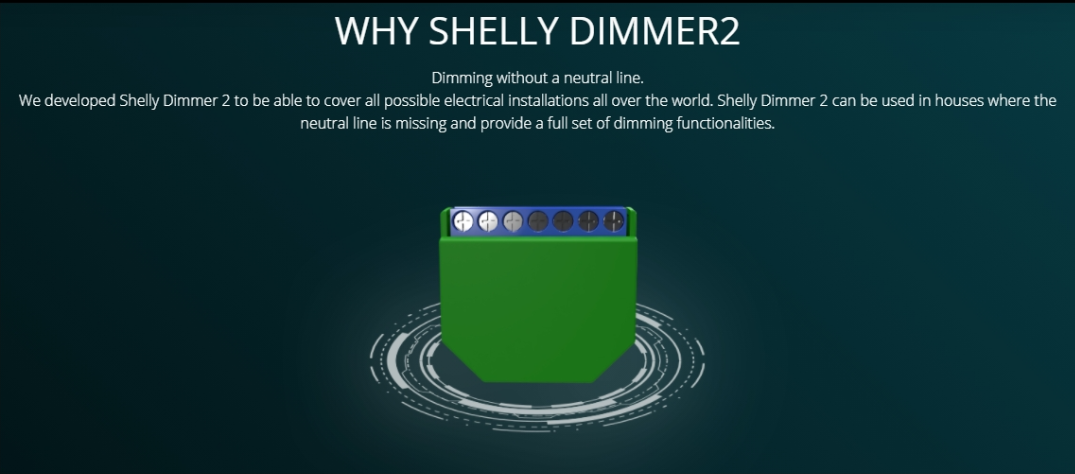

WHAT IS SHELLY DIMMER 2?

Dimming without a neutral line

We developed Shelly Dimmer 2 to be able to cover all possible electrical installations all over the world. Shelly Dimmer 2 can be used in houses where the neutral line is missing and provide a full set of dimming functionalities. You can control a wide range of halogen lights, dimmable LED and ferromagnetic transformers.

Features

  • No HUB required.
  • Dimming without a neutral line.
  • Turn-ON/OFF or use the dimming function to set your lights to your preference.
  • Special internal temperature sensor for overheating protection.
  • Designed to fit in most standard electrical boxes and switches.
  • It can be integrated to work with all other Shelly devices.
  • Compatible with Android, iOS, Amazon Alexa, Google Assistant, and home automation servers using MQTT, CoAP, and REST API.
  • Easily make your Arduino project live and usable in your automation project.




















POWER
Power supply AC110-230V ±10%, 50/60Hz
SPECIAL FUNCTIONS
Device temperature protectionYes
Overload protectionYes
Power measurementYes
DimmingYes
Dimmable LED50-200VA / 10W – 200W
Incandescent and halogen light sources10-220W
Resistive-inductive loads ferromagnetic transformers50-150VA
Working without a neutral lineYes
FEATURES
Colour changingNo
Predefined effectsYes
Channels1 Channel
Operational temperature0 to + 35 °C
Device power consumption< 1 W
Intelligent On/OffYes
Local and remote controlYes
Sunrise/SunsetYes
Weekly ScheduleYes
UL Listed optionNo
CONNECTIVITY
Wireless/WiFi Protocol802.11 b/g/n
Radiofrequency2400 – 2500 MHz
Radio signal power1mW
Rangeup to 50 m outdoors and up to 30 m indoors (depending on the building materials)
DIMENSIONS
Size42mm x 36mm x 14 mm
There are no reviews for this product.

Write a review

Please login or register to review

Shelly Dimmer - 2 Automation Relay

  • Brand: Shelly
  • Product Code: Shelly Dimmer 2-AU
  • Availability: In Stock
  • AUD $ 39.95
