DALI-2

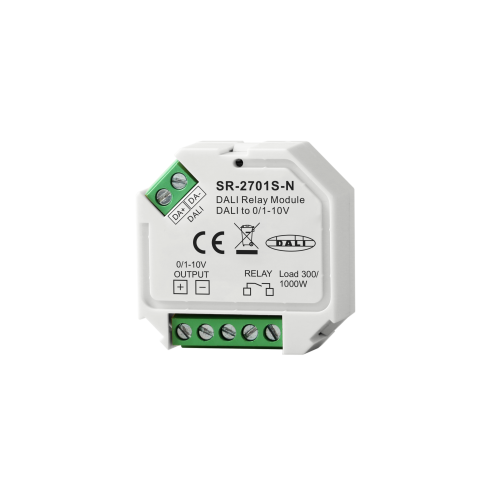

DALI-2 Relay Module
> DALI-2 relay module > 100-240VAC power supply
> 1 channel relay, max. 1000W incandescent, 300W LED
> Loads that do not have a DALI input can therefore be integrated in the DALI circuit > Compatible with universal DALI systems and master controllers in the market
> Mini size, easy to be installed into a standard wall box Model Output Power Input Voltage Switch Voltage Feature DALI-2 DALI-2 DALI MCU
>Each control circuit can supply 100mA DALI power for as many as 50 DALI devices
> The lighting system responds immediately and harmoniously when the brightness level is changed at either of the control devices.
> All that while allowing for the required comfortable, easy and complete control over the lighting levels at any time. > Innovative function to power DALI bus while connected to AC mains
> Powered by DALI bus while not connected to AC mains
> Operation voltage: 100-240Vac/Power by DALI bus
> Comply to DALI standard protocol
> DALI bus powered, one channel DALI bus can install multiple dimming controllers.
> No external power supply which is provided by DALI bus. Consumption current is 4mA.
> Enable to select and control group/address
> Enable to control all devices on the DALI circuit through broadcast
> Operation voltage: power by DALI bus 17.5 80 80
> Easy installation: the device can be installed in a flush-mounted installation box such as TEM HE11-U
Price shown is indicative in Australian Dollars.
For best and least expensive price
Download the latest USD Price List here.
DALI-2 Relay Module
- Brand: Sunricher
- Product Code:
SR-2701S-DT7 - Availability: Delivery 10-14 days-Call
-
AUD $ 99.95
Tags: DALI, Relay, DALI-2 Relay Module
