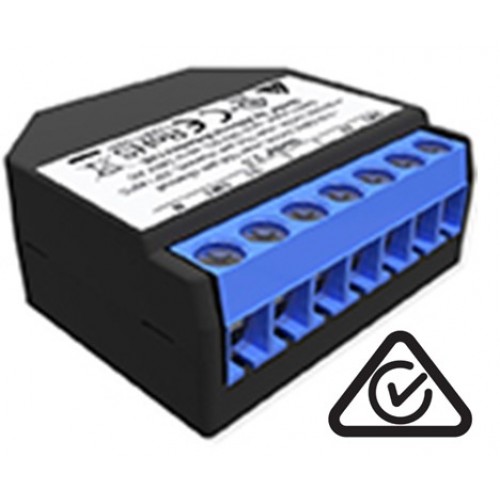

WHAT IS SHELLY 2.5?

Smaller but more powerful

We developed Shelly 2.5 to have a maximum load of 2x2300W or 2x10A. Independent dual power metering for each channel allowing you to monitor the status and history, as well as the current and past electrical power consumption.

Features

No HUB required.
Wide range of voltage support.
Control any 110-230v roller shutter, motorized curtains or awning.
Two integrated precise power meters that allow you to measure the consumption for each channel separately.
Internal temperature sensor for overheating protection.
Designed to fit in most standard electrical boxes and switches.
It can be integrated to work with all other Shelly devices.
Compatible with Android, iOS, Amazon Alexa, Google Assistant, and home automation servers using MQTT, CoAP, and REST API.
Easily make your Arduino project live and usable in your automation project.

Specification

POWER
Power supply AC	110-230V ±10%, 50/60Hz
Power supply DC	24 – 60V
SPECIAL FUNCTIONS
Dry contacts	No
Roller shutter mode	Yes
Device temperature protection	Yes
Overload protection	Yes
Power measurement	Yes
Working without a neutral line	No
FEATURES
Channels	2 Channel
Maximum load	10A per channel
Operational temperature	-40 to + 40 °C
Device power consumption	< 1 W
Intelligent On/Off	Yes
Local and remote control	Yes
Sunrise/Sunset	Yes
Weekly Schedule	Yes
UL Listed option	Yes
CONNECTIVITY
Wireless/WiFi Protocol	802.11 b/g/n
Radiofrequency	2400 – 2500 MHz
Radio signal power	1mW
Range	up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
DIMENSIONS
Size	39mm x 36mm x 17 mm

WIRING DIAGRAMS

How to connect

Roller shutter/blinds/tents/awnings/garage doors/barriers

Often you are in a rush when heading to work, and you want to get there as quickly as possible, or maybe you forgot to close the garage? With Shelly 2.5, you can avoid this, and when going out from home, open and close your garage door with a single tap, or even with your voice. Controlling roller shutters, garage doors, barriers, or any bi-directional motor has never been easier.

Control two independent circuits with 1 device

You are ready for bed, but start thinking if you have switched off the lights downstairs? Avoid this and control two independent circuits with one device. Simply install Shelly 2.5 at home and control the lighting of two separate lamps. They may be in the same or different rooms.
